22F ring type high head normally closed normally open self-locking reset Featured Image
  • 22F ring type high head normally closed normally open self-locking reset

22F ring type high head normally closed normally open self-locking reset

Short Description:

Product Model: Q22F-4
Type:Ring with LED,Momentary/Maintained
Material:304 stainless steel housing，PA66
Protection level:IP67, IK10, IP40.
Electrical parameters:5A /250VAC
Contact resistance:≤50Ω
Insulation resistance:≥1000MΩ
LED voltage:3V-220V
Service temperature range:-20℃—55℃
Lamp bead life:40,000 hours
Mechanical life:30 times/min，500,000 times


  • :

    • Product Detail

    FAQ

    Product Tags

    Product Characteristics

    1. Adopt flame retardant material, safety guarantee, stainless steel shell anticorrosion and dust proof.
    2. Contains PC button, silicone waterproof ring, high performance, solid and reliable.

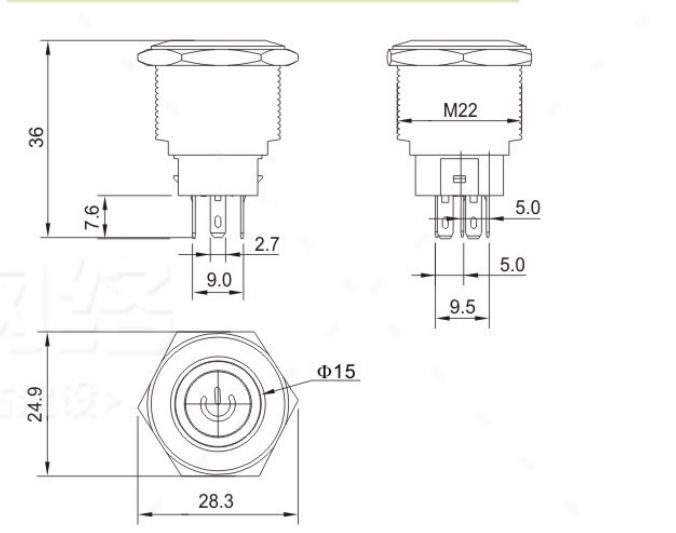

    Product Drawing

    sd
    asd

    Application Areas

    The product can be applied to transportation,safety equipment,household appliances,medical equipment, starter,Bathroom, accesscontrol.

    Package picture

    sad
    asd
